Problem

GREPhysics.NET Official Solution

\prob{46}

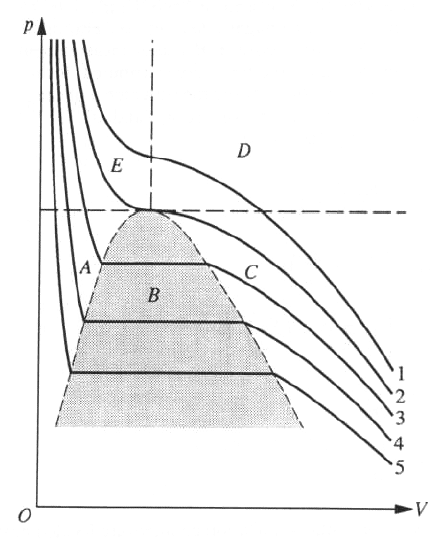

Isotherms and coexistence curves are shown in the pV diagram above for a liquid-gas system. The dashed lines are the boundaries of the labeled regions.

Which numbered curve is the critical isotherm?

Thermodynamics $\Rightarrow$ }Critical Isotherm

The critical isotherm is the (constant temperature) line that just touches the critical liquid-vapor region, explained in the next question. The condition for the critical isotherm is $\left(\frac{dP}{dV}\right)_c=0$ and $\left(\frac{d^2P}{dV^2}\right)_c=0$ , where c denotes the critical point.

Alternate Solutions

There are no Alternate Solutions for this problem. Be the first to post one!

Comments

neon37
2010-11-11 23:25:48

Easy way even without knowing anything in physics at all. There is nothing "critical" about 1, 3 -5. Only 2 looks "critical".

droosenoose
2019-10-18 19:49:04

that what I did lol

Reply to this comment

sirenayka
2008-10-14 21:49:48

Answer should be 2.

Reply to this comment

Ning Bao
2008-01-29 11:48:28

Immediately we know that there is ino difference between 3, 4, and 5: their properties are the same. There is also nothing differentiating curve 1 from a curve just above or just below it. Only curve 2 is unique enough to be the anwer.

Reply to this comment

bucky0
2007-11-01 14:48:41

(B) Is the answer

Reply to this comment
